"TAN KAH KEE" scientific research ship project
Release time
：2024-01-08 09:57:09 Views：
Project start date: March 23, 2022
BIM implementation scope: including radar mast and decks, with a total area of 5166.34m2
Project Overview: Due to the demand of the Xiamen University Ship Management Center for the application of the "TAN KAH KEE" scientific research ship in the field of academic research, it is hoped that the three-dimensional software will be used to generate a three-dimensional model of the scientific research ship through three-dimensional data, according to the existing drawings and collected data. Therefore, Bimodeling Information Technology (Xiamen) Co., Ltd. was entrusted to collect data from the "TAN KAH KEE", and the "TAN KAH KEE" was modeled by using the company's BIM collaborative data and digital reverse technology.
Project Scale:
Length: 77.7m
Breadth: 16.24m
Design draft: 5.0m

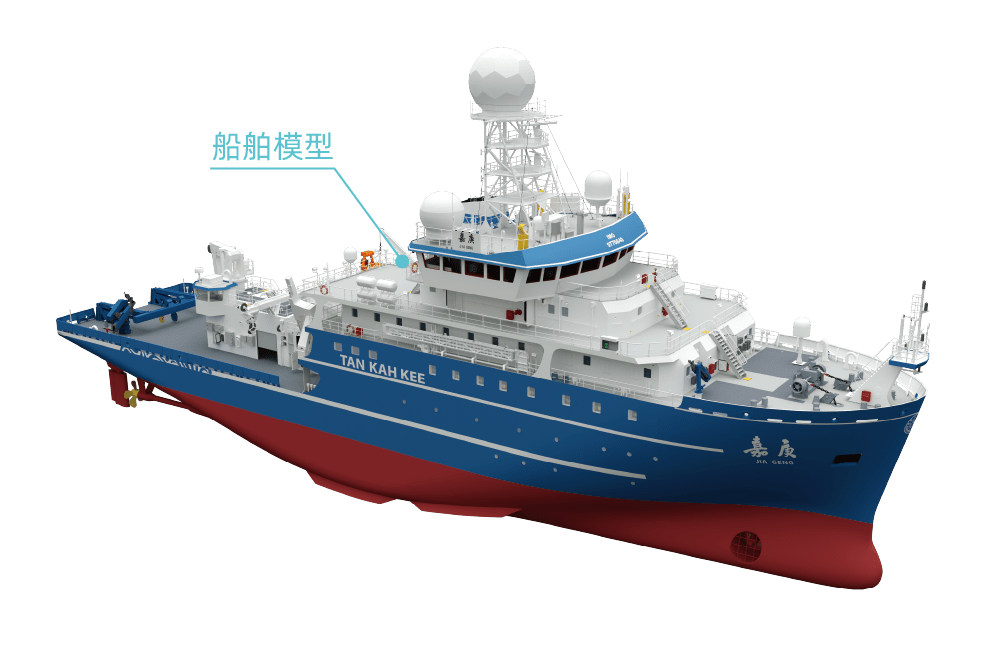

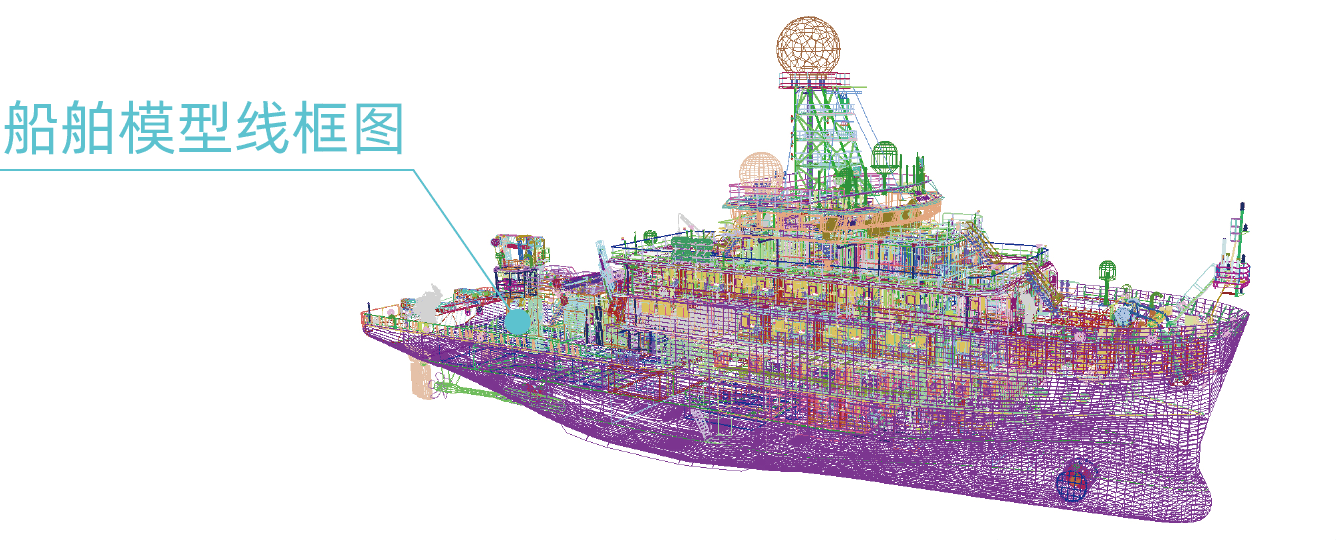

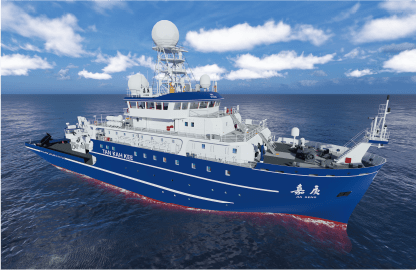

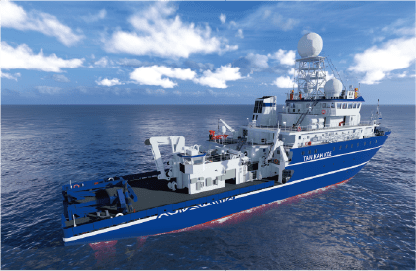

Model renderings

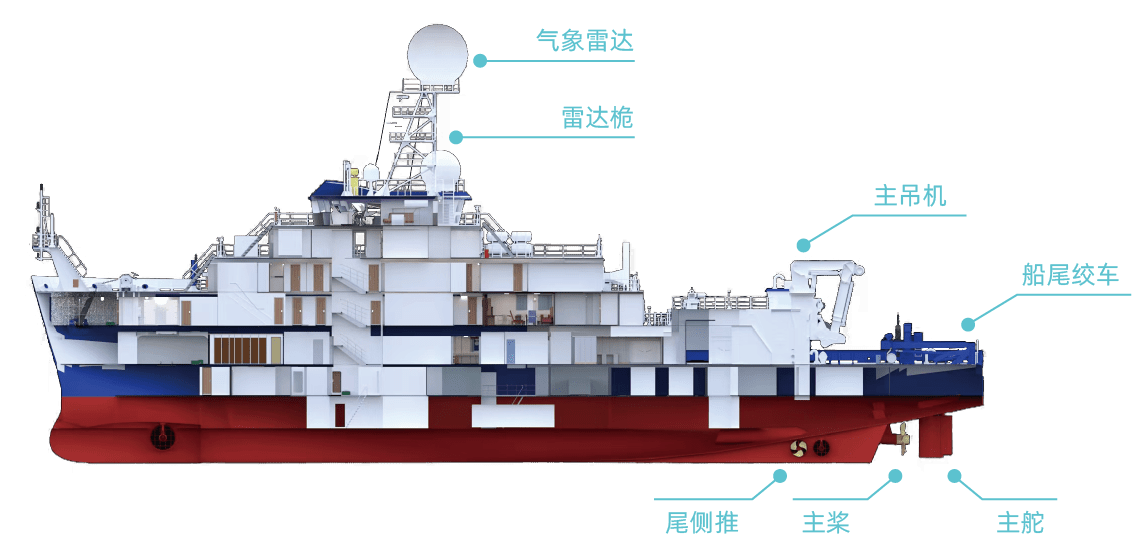

Model section

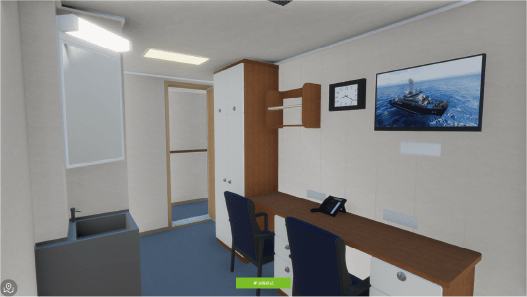

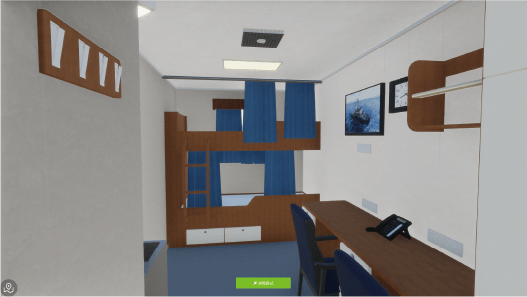

Interaction design
Adding interactivity to the ship's cabins allows personnel to quickly familiarize themselves with the interior of the hull
Project Overview: Due to the demand of the Xiamen University Ship Management Center for the application of the "TAN KAH KEE" scientific research ship in the field of academic research, it is hoped that the three-dimensional software will be used to generate a three-dimensional model of the scientific research ship through three-dimensional data, according to the existing drawings and collected data. Therefore, Bimodeling Information Technology (Xiamen) Co., Ltd. was entrusted to collect data from the "TAN KAH KEE", and the "TAN KAH KEE" was modeled by using the company's BIM collaborative data and digital reverse technology.
Project Scale:
Length: 77.7m
Breadth: 16.24m
Design draft: 5.0m
Model renderings
Model section
Interaction design
Adding interactivity to the ship's cabins allows personnel to quickly familiarize themselves with the interior of the hull
(Enter the room)
(Leave the room)
