Xiamen Water Group Tianma Road Project

Xiamen Tianma Road Pipeline Detection BIM Project is located in Jimei District, is a key project commissioned by Xiamen Water Affairs Group, based on the long buried time of some underground pipelines in the city, the complex environment of the construction site and other factors, in the later maintenance and update of the actual pipeline location and the archive pipeline does not match, making the maintenance of underground pipelines difficult, time-consuming, costly, become a major problem in urban development.

(Tianma Road pipeline detection scan)

Bimodeling uses the MALA MIRA three-dimensional ground penetrating radar to detect underground pipelines and collect municipal comprehensive pipeline information. This technology can realize the three-dimensional data acquisition of various pipelines buried within 5 meters and with a diameter greater than 24mm. The working efficiency of road underground pipeline detection reaches 20,000~50,000 square meters. Compared with the traditional single-channel detection radar, the MALA MIRA three-dimensional ground penetrating radar has a small profile spacing, high acquisition efficiency, and seamless data splicing. Collected data is not lost.

(three-dimensional Ground Penetrating Radar Technology)

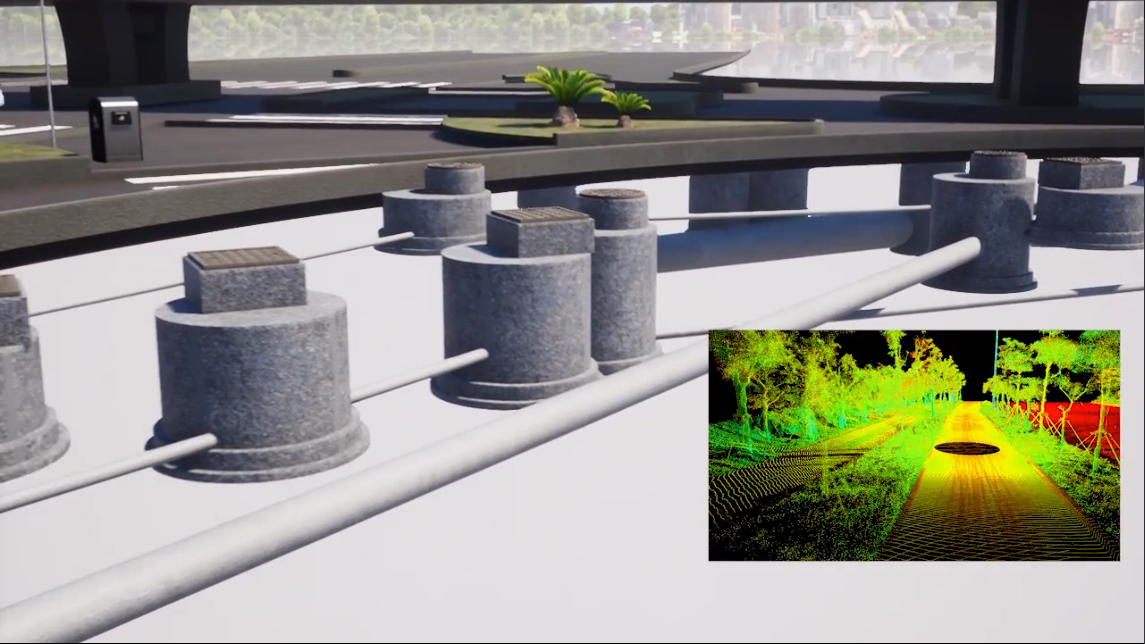

After the integrated pipeline data collection, the three-dimensional model is generated by the software, and the conversion from the actual scene to the three-dimensional data is completed. The high-precision positioning and reverse modeling process ensures that the pipeline model is consistent with the actual buried area, and reproduces the valve area, tube well layout and distribution and other adjacent pipeline layouts. Integrate the existing information of the underground pipe network so that customers can inquire at any time.

Based on the three-dimensional model database, the design pre-simulation of the demolition of old pipelines and the laying of new pipelines is realized. And provide customers with the most optimal and reasonable suggestion report. Using the model database, customers can intuitively plan retrofit plans.
