Oriental Fortune Center Scaffold Model(Zhangzhou, China)
Release time
：2024-01-05 17:00:42 Views：
Project Start Date: March of 2016
Project Location: No. 1 Jianyuan East Road, Zhangzhou, Fujian Province, China, 363000
Project Scope: All of the Scaffolds
Total Construction Area: 1000 m2 (Over 10,763.9 sqft)
Project Overview:
Oriental Fortune Center is a commercial complex located in the heart of Zhangzhou, with a total construction area of approximately 51,900 m2 (~558,646.95 sqft). The project consists of a commercial building and associated commercial facilities. The above-ground portion features a 107-meter-tall, 26-story commercial building, with two underground parking levels providing 463 parking spaces. The standard floor area of the commercial building is approximately 1,135.48 m2 (~12222.21 sqft), offering seven different unit types, ranging in size from 127 m2 to 263 m2 (equivalent to 1,367.02 sqft to 2,830.91 sqft).
Proejct Details:
Bimodeling created a reasonable construction scaffold model based on the BIM model and performed a simulation of its assembly.
Project Location: No. 1 Jianyuan East Road, Zhangzhou, Fujian Province, China, 363000
Project Scope: All of the Scaffolds
Total Construction Area: 1000 m2 (Over 10,763.9 sqft)
Project Overview:
Oriental Fortune Center is a commercial complex located in the heart of Zhangzhou, with a total construction area of approximately 51,900 m2 (~558,646.95 sqft). The project consists of a commercial building and associated commercial facilities. The above-ground portion features a 107-meter-tall, 26-story commercial building, with two underground parking levels providing 463 parking spaces. The standard floor area of the commercial building is approximately 1,135.48 m2 (~12222.21 sqft), offering seven different unit types, ranging in size from 127 m2 to 263 m2 (equivalent to 1,367.02 sqft to 2,830.91 sqft).
Proejct Details:
Bimodeling created a reasonable construction scaffold model based on the BIM model and performed a simulation of its assembly.

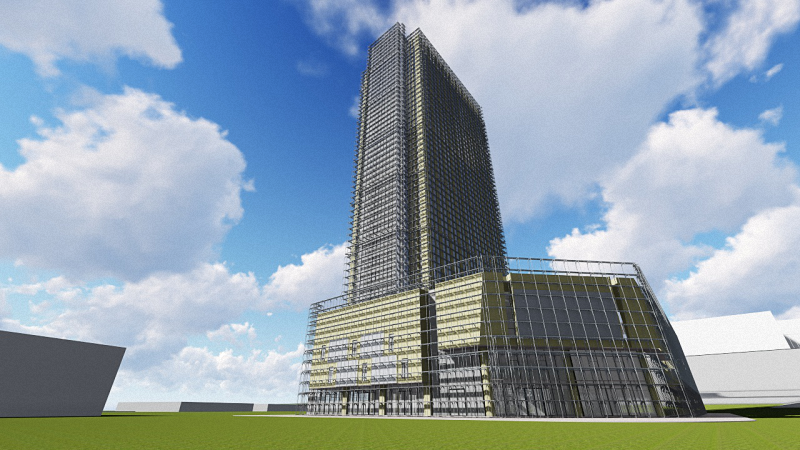

Scaffold Model
