Redco Hangzhou Qinglin Bay Project
Release time
：2024-01-05 16:43:22 Views：
Project start date: May 27, 2021
Project Location: Yangdai Village, Shanggan Street, Lin'an District, Hangzhou City, Zhejiang Province
Actual aerial survey range: 85441.7m2 in the scanning area
Project Overview:
The land is a hilly landform, the plot adopts the national 2000 plane coordinate system, the 1985 national elevation datum, the highest part of the terrain in the north is about 123.36m, and the elevation is about 58.68m at the junction of municipal roads in the south, and the elevation difference between north and south is about 71.11m, which slowly descends to the east and west, the elevation of the low depression of the mountain in the west is about 74.67m, and the elevation of the lower part of the east is about 67.69m.
The UAV is used to collect data from the scanning area, and the elevation, elevation difference, cut-and-fill of different locations can be directly read through the terrain model for simulation and analysis.
Project Scale:
Total land area: 85441.7m2
Site fill: 78018.49m2
Site cut: 342,863.35m2
Site balance earthwork: 264844.86m2
Earthwork Quantity Surveying: Assist in the early stage of design to quickly, accurately and efficiently issue different earthwork balance comparison schemes
Integration of terrain status model and BIM model: Through the integration of terrain status model and BIM model, the earthwork retaining wall can be intuitively optimized, and the vertical analysis and construction drawing design of the site can be assisted
Project Location: Yangdai Village, Shanggan Street, Lin'an District, Hangzhou City, Zhejiang Province
Actual aerial survey range: 85441.7m2 in the scanning area
Project Overview:
The land is a hilly landform, the plot adopts the national 2000 plane coordinate system, the 1985 national elevation datum, the highest part of the terrain in the north is about 123.36m, and the elevation is about 58.68m at the junction of municipal roads in the south, and the elevation difference between north and south is about 71.11m, which slowly descends to the east and west, the elevation of the low depression of the mountain in the west is about 74.67m, and the elevation of the lower part of the east is about 67.69m.
The UAV is used to collect data from the scanning area, and the elevation, elevation difference, cut-and-fill of different locations can be directly read through the terrain model for simulation and analysis.
Project Scale:
Total land area: 85441.7m2
Site fill: 78018.49m2
Site cut: 342,863.35m2
Site balance earthwork: 264844.86m2
(Red line on orthophoto set)

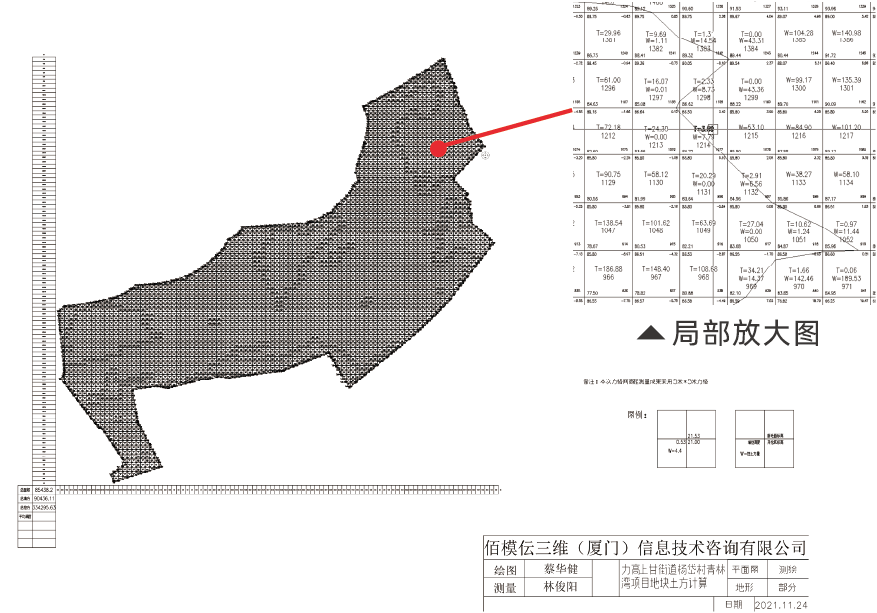

Earthwork Quantity Surveying: Assist in the early stage of design to quickly, accurately and efficiently issue different earthwork balance comparison schemes

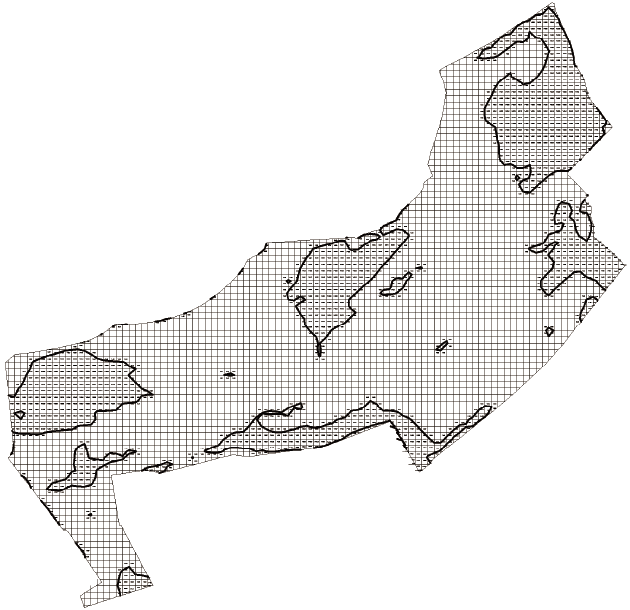

(Schematic diagram of cut-and-fill area)
Integration of terrain status model and BIM model: Through the integration of terrain status model and BIM model, the earthwork retaining wall can be intuitively optimized, and the vertical analysis and construction drawing design of the site can be assisted
