SCE Funworld (Suzhou,China)
Release time
：2024-01-05 14:57:53 Views：
Project Start Date: January of 2022
Project Location: No. 68 Guanghui Road, Kunshan, Jiangsu Province, China, 215300
Project Scope:All at-grade and subterranean levels
Total Construction Area: 164,646.13 m2 (Over 1,772,234.48 sqft)
Project Overview:
Suzhou SEC Funworld is a large-scale urban complex project, conveniently located near Huachao Station on Shanghai Metro Line eleven and S1 Line with a total investment of approximately ¥5.5 billion yuan (~$771 millions USD). The project spans approximately 112,600 m2 (~ 1212016.31 sqft) and comprises residential, hotel, commercial, and office spaces.The overall design features the style of Suzhou gardens while seamlessly blending in modern urban functionalities with traditional architectural aesthetics.
Project Details:
Bimodelling built a comprehensive Revit model based on contractor-provided drawings to identify and resolve issues, optimize the all-professional piping layout, and address potential gaps in the traditional drawings of the 2D pipeline design layout. By integrating secondary MEP system and interior design drawings, the model was further developed to detect clashes between interior finishes and other disciplines in each area, helping to avoid costly rework in the design phase.
1. BIM Model
Using specialized software to generate a complete BIM model.
4. From hardcover to beautiful Chen landing
Starting from the main model, we will deepen it, and complete the hardcover model and the Meichen model, which will be exactly the same
Project Location: No. 68 Guanghui Road, Kunshan, Jiangsu Province, China, 215300
Project Scope:All at-grade and subterranean levels
Total Construction Area: 164,646.13 m2 (Over 1,772,234.48 sqft)
Project Overview:
Suzhou SEC Funworld is a large-scale urban complex project, conveniently located near Huachao Station on Shanghai Metro Line eleven and S1 Line with a total investment of approximately ¥5.5 billion yuan (~$771 millions USD). The project spans approximately 112,600 m2 (~ 1212016.31 sqft) and comprises residential, hotel, commercial, and office spaces.The overall design features the style of Suzhou gardens while seamlessly blending in modern urban functionalities with traditional architectural aesthetics.
Project Details:
Bimodelling built a comprehensive Revit model based on contractor-provided drawings to identify and resolve issues, optimize the all-professional piping layout, and address potential gaps in the traditional drawings of the 2D pipeline design layout. By integrating secondary MEP system and interior design drawings, the model was further developed to detect clashes between interior finishes and other disciplines in each area, helping to avoid costly rework in the design phase.
1. BIM Model
Using specialized software to generate a complete BIM model.

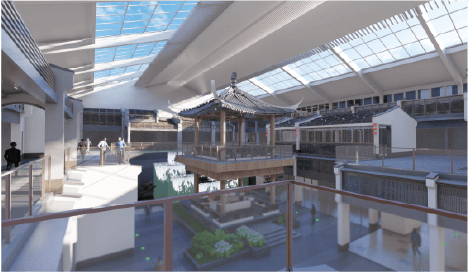

Partial Renovation Model
Part of the Ground Floor MEP System Model
2.Clash Point Detection
Bimodeling leveraged the BIM model to perform advanced clash detection, where the system identified and analyzed conflict points within the construction documents as well as collaborating with all stakeholders to resolve these discrepancies, significantly enhancing the overall construction quality. For example, in the following clash case, the clash detection revealed a conflict between the sump and the pile cap. After discussion among departments, the solution was to reduce the area of the pile cap.
Bimodeling leveraged the BIM model to perform advanced clash detection, where the system identified and analyzed conflict points within the construction documents as well as collaborating with all stakeholders to resolve these discrepancies, significantly enhancing the overall construction quality. For example, in the following clash case, the clash detection revealed a conflict between the sump and the pile cap. After discussion among departments, the solution was to reduce the area of the pile cap.

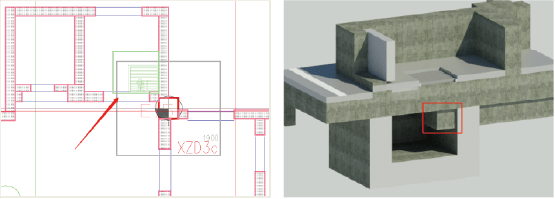

Example of Collision Issue
The Solution of Collision Issue
3. During Interior Decoration.
Enhanced the 3D visualization tools to direct on-site construction activities, ensuring the interior finishes align perfectly with the expected outcome.

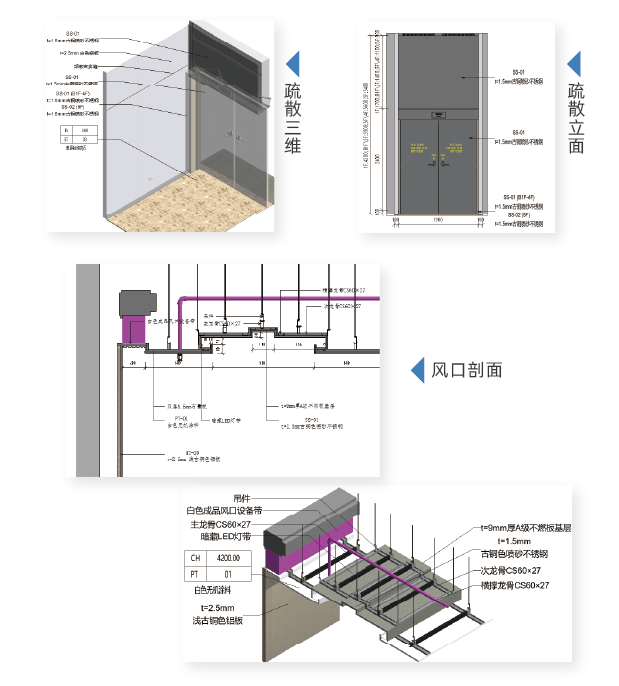

Part of the Interior Finishing Detail Drawing
4. From hardcover to beautiful Chen landing
Starting from the main model, we will deepen it, and complete the hardcover model and the Meichen model, which will be exactly the same

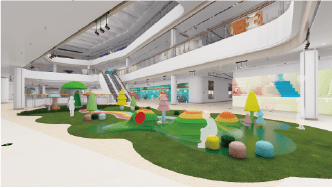

Part of Interior Finishing Model - 1

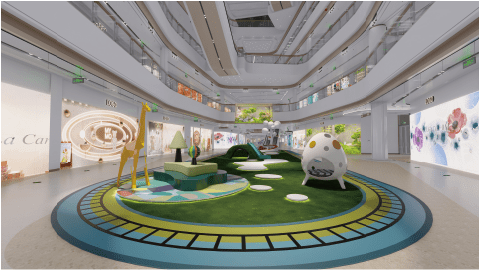

Part of Interior Finishing Model - 2
