Facade Flatness Scanning Project

Project Location: Minhang District, Shanghai ,China

Areas Utilizing BIM: Scanning Coverage Area: 36,822 m² (Approx. 396348.71 sq ft)

Number of Buildings Scanned: 8

Applications of BIM: Bimodeling utilizes 3D laser scanning technology to efficiently capture millimeter-level high-precision data, ensuring full coverage of the building facade through Facade Flatness Scanning without omissions. The collected data is processed into a visualized 3D point cloud model that clearly highlights defects and deviations, providing precise support for construction quality control and rectification.

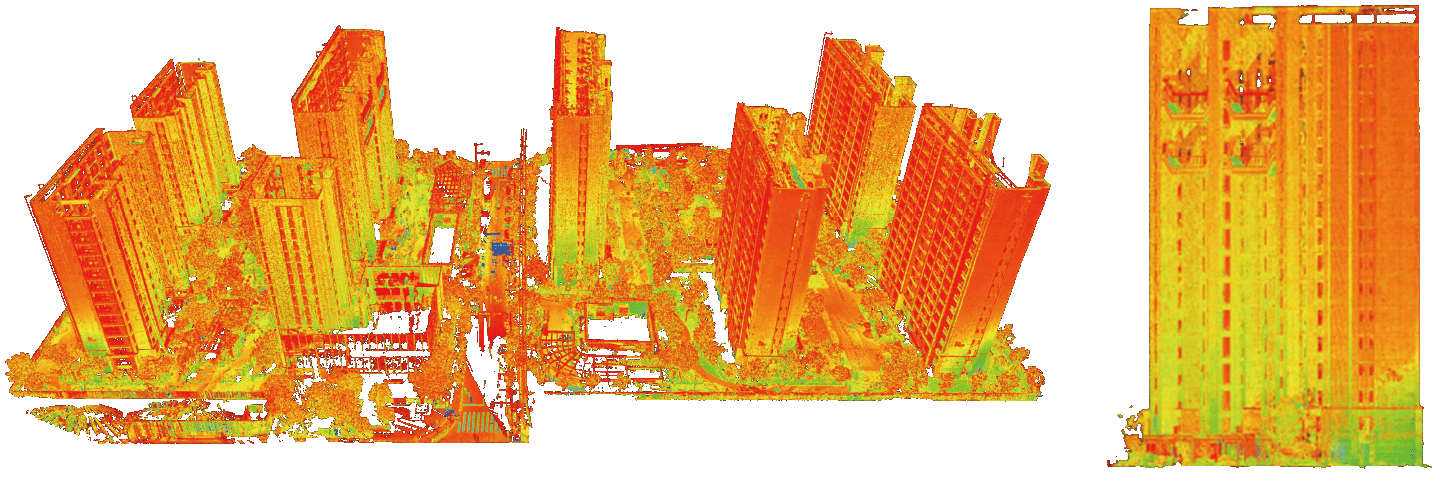

1. 3D Point Cloud Model

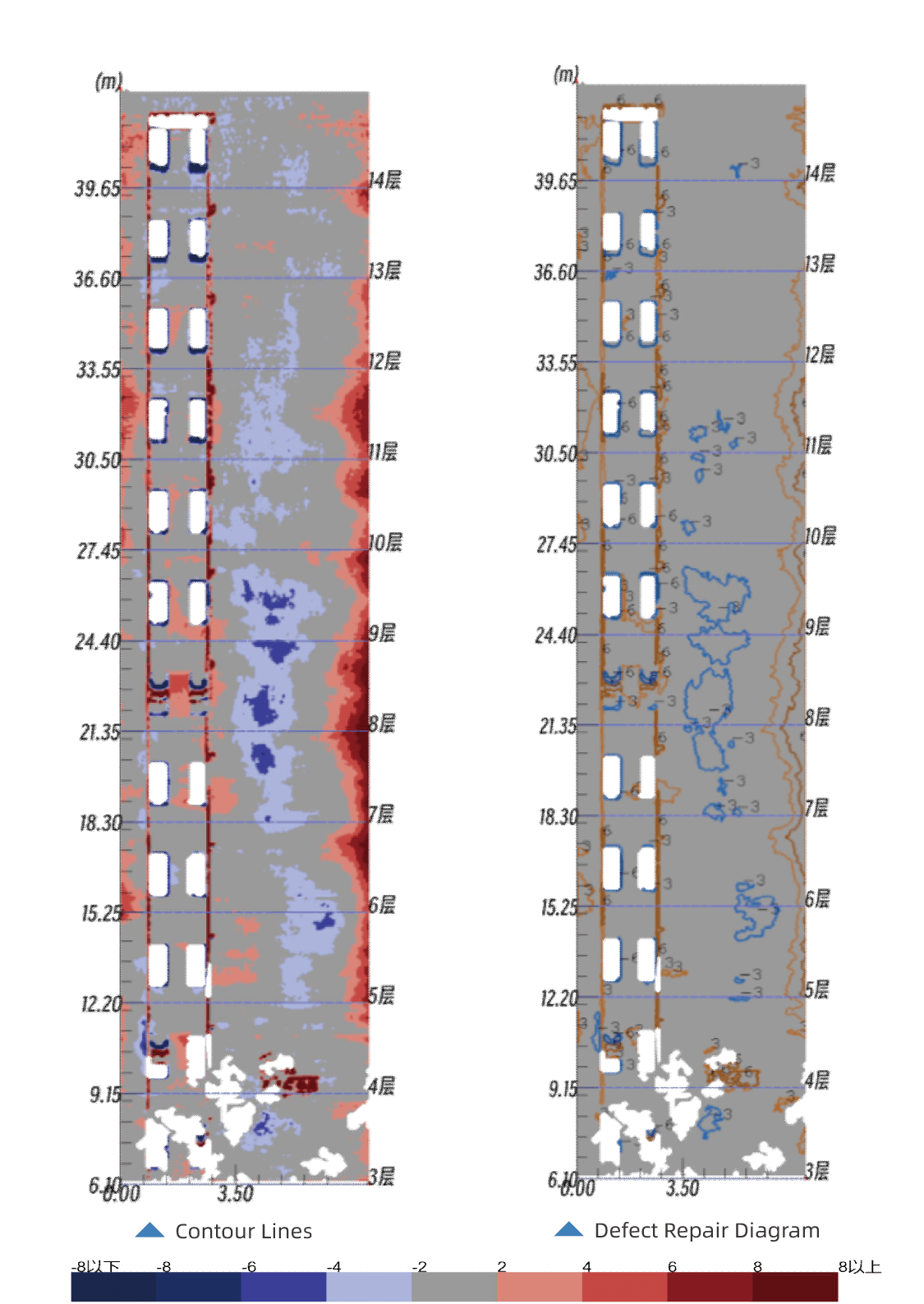

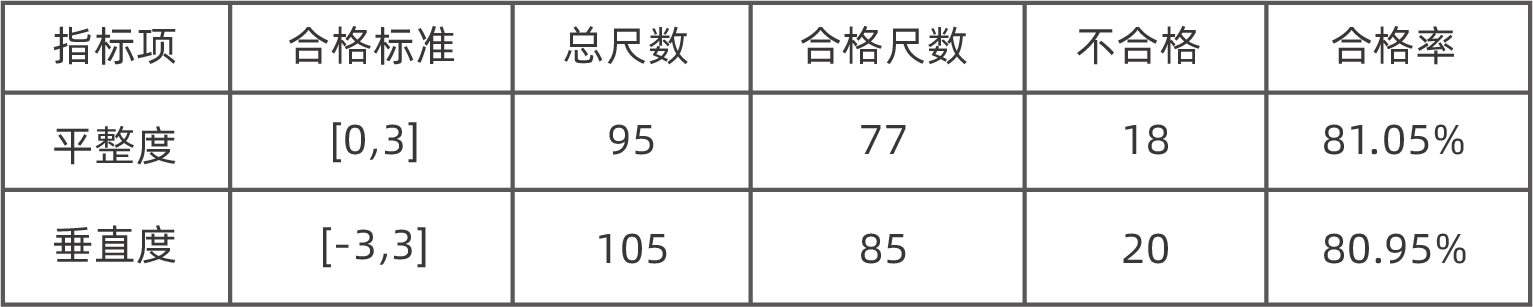

2.Facade Flatness and Verticality Scanning Results

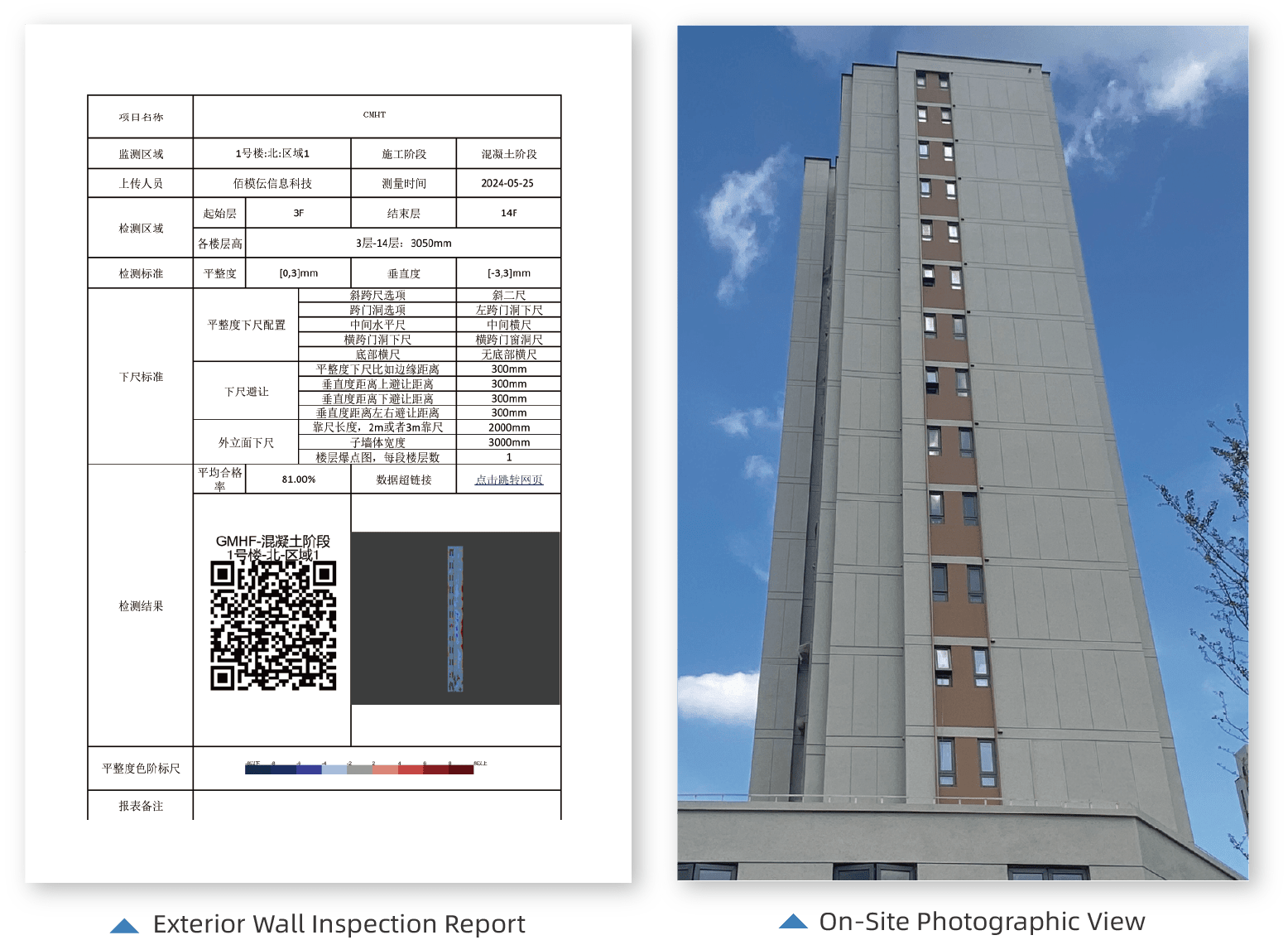

Bimodeling employs high-precision 3D laser scanning equipment to carry out Facade Flatness Scanning, enabling comprehensive surveying of exterior walls. Real-time professional inspection reports are generated, visually presenting flatness and verticality deviation data; this helps construction teams to accurately identify problem areas, scientifically guide adjustments, and ensure that the façade quality meets required standards.

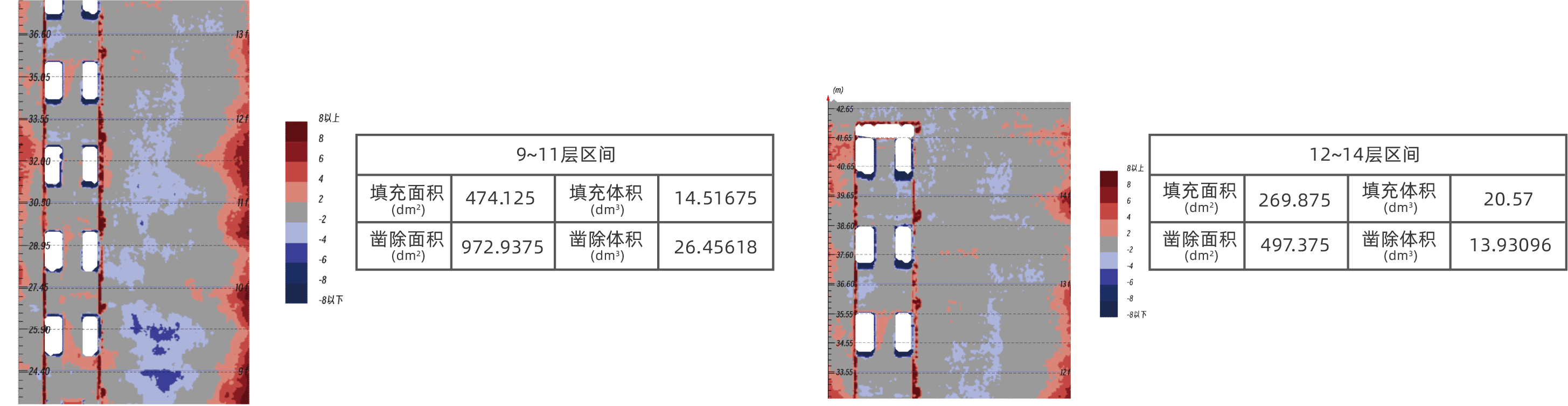

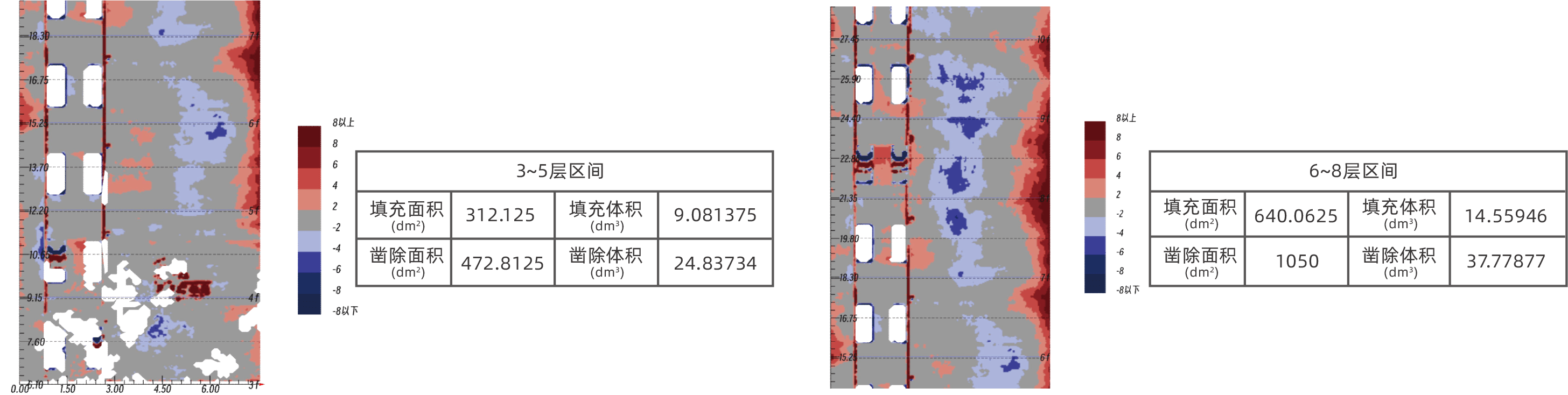

3.Recommendations for Defect Repair in Wall Inspection Intervals
Bimodeling provides scientific repair recommendations to develop rectification plans, addressing deviation areas while optimizing construction processes, reducing maintenance costs, and enhancing customer satisfaction. Additionally, Bimodeling offers strong support for the building's entire lifecycle management through Facade Flatness Scanning.
