Redco Future City Commercial Project in Jinan，China

Project Location: West side of Jing’er Road and south side of Wei’er Road, Jiyang District, Jinan City, Shandong Province, China

Areas Utilizing BIM: Above-Ground Retail Areas and Basement Levels

Magnitude of the Project:
Land Area: 18,822.74m² (approx. 202606 ft²)
Total Construction Area: 92,886.8m²(approx. 999825 ft²)
Above-Ground Construction Area: 65,722.58m²(approx. 707432 ft²)
Underground Construction Area: 27,164.22m²(approx. 292393 ft²)

Applications of BIM: Bimodeling applies Building Information Modeling (BIM) technology to develop 3D digital models that precisely match on-site dimensions. The team conducts comprehensive checks for design errors, omissions, clashes, and missing components. Through integrated modeling, the mechanical, electrical, and plumbing (MEP) systems are optimized and detailed construction drawings are produced. This process helps improve the quality of the design documentation and supports the client in implementing the drawings effectively on site.

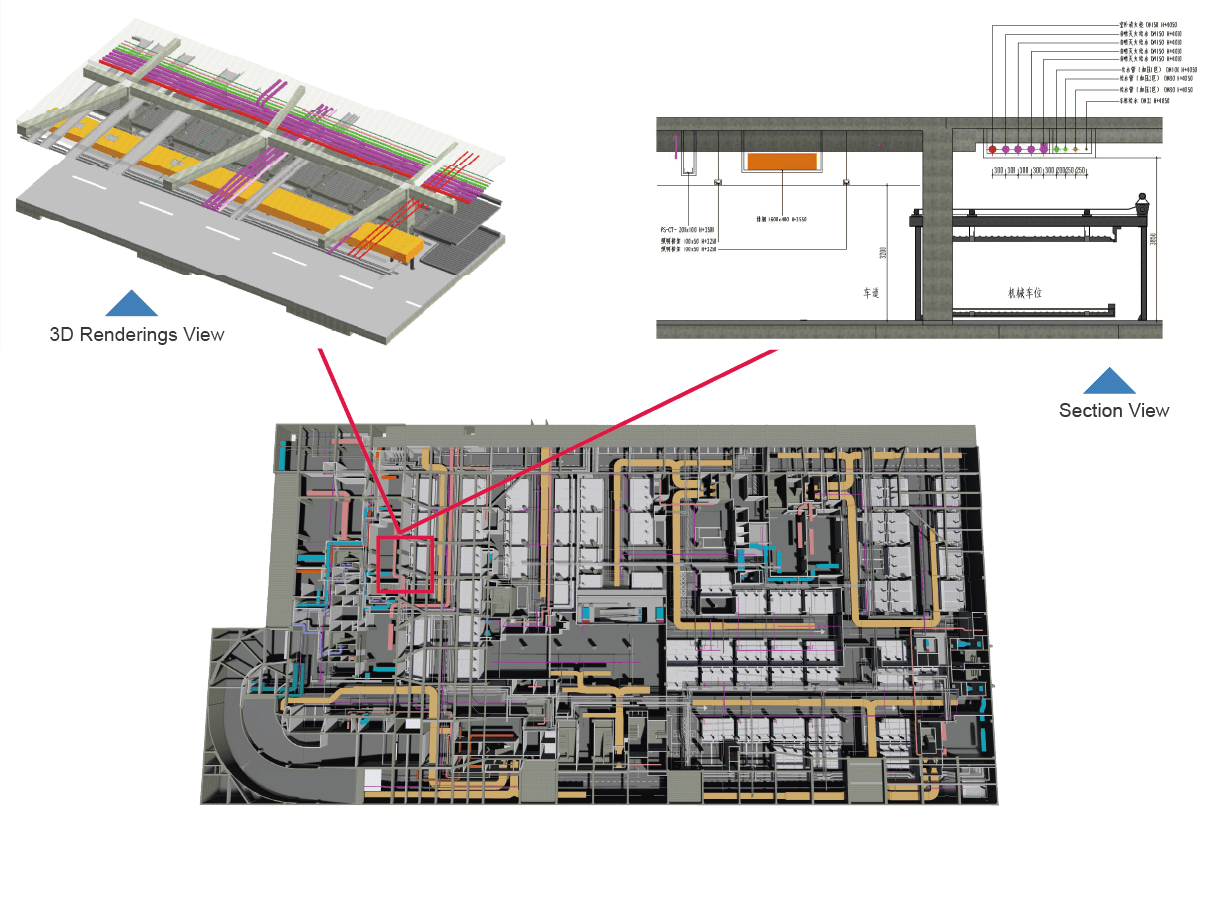

1. 3D Digital Twin Model

Architectural and Structural Model

2. Construction Phase
Use of 3D visualization to guide on-site construction

3. Inspection Phase

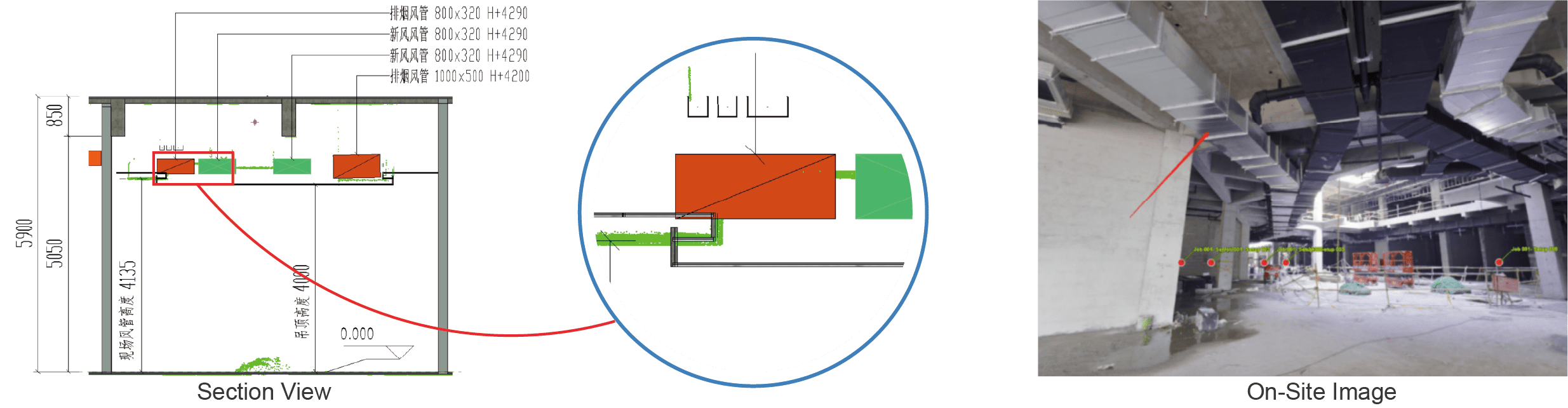

By integrating and comparing the point cloud model collected on-site with the BIM model, the construction quality can be effectively verified against the design drawings. This process supports the generation of standardized inspection reports and enhances overall construction quality management.

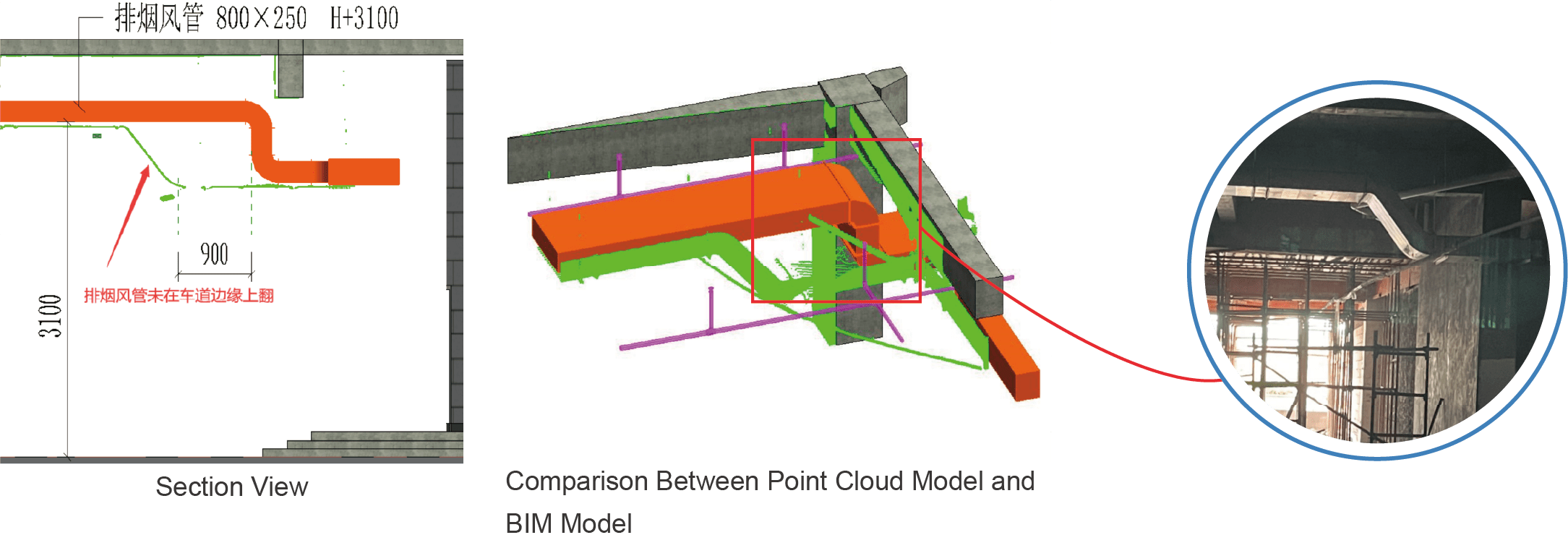

Issue 1: The on-site installation of the air duct does not follow the design drawing; hence, it fails to rise along the edge of the driveway as specified.
